2016 Ford Mustang GT

  • 2016 Ford Mustang GT
  • 2016 Ford Mustang GT
  • 2016 Ford Mustang GT
  • 2016 Ford Mustang GT
2016 Ford Mustang GT
Color
Magnetic Metal
Engine
Supercharged 5.2L V8
Transmission
Manual
Location
Wharton, NJ

The Story

19 year old with a dream who wanted an absolute killer track car. Was able to build it up with the help of my older cousin and a extremely great local AutoSport Shop.
Car has been to tracks all over the US including COTA, NJMP, Watkins Glen, and Lime Rock just to name a few.

Vehicle Info

  • Engine
    Supercharged 5.2L V8
  • Color
    Magnetic Metal
  • Location
    Wharton, NJ
  • Transmission
    Manual
  • Drivetrain
    RWD
  • Horsepower
    1020 hp
  • Torque
    790 lb-ft

Performance Modifications

  • Ford Performance 5.2-liter engine block
  • Ford Racing 5.0-liter cross-plane crankshaft
  • Clevite main bearings
  • Automotive Racing Products main studs and side bolts
  • Manley Performance Products H-Beam connecting rods
  • Clevite connecting rod bearings
  • Automotive Racing Products ARP2000 connecting rod bolts
  • Manley Performance Products Platinum Series Extreme Duty pistons (with 11:1 compression ratio)
  • Total Seal piston rings
  • Stage 3 ported cylinder heads (GT350)
  • Offcamber Autosport Custom ground Camshafts
  • Manley Performance Products valve springs
  • COMP Cams valve spring retainers
  • Ford Racing headgaskets
  • Automotive Racing Products cylinder head studs
  • ATI RACING Super Damper harmonic balancer
  • Kessels Tuning E85 tune + 93 Tune

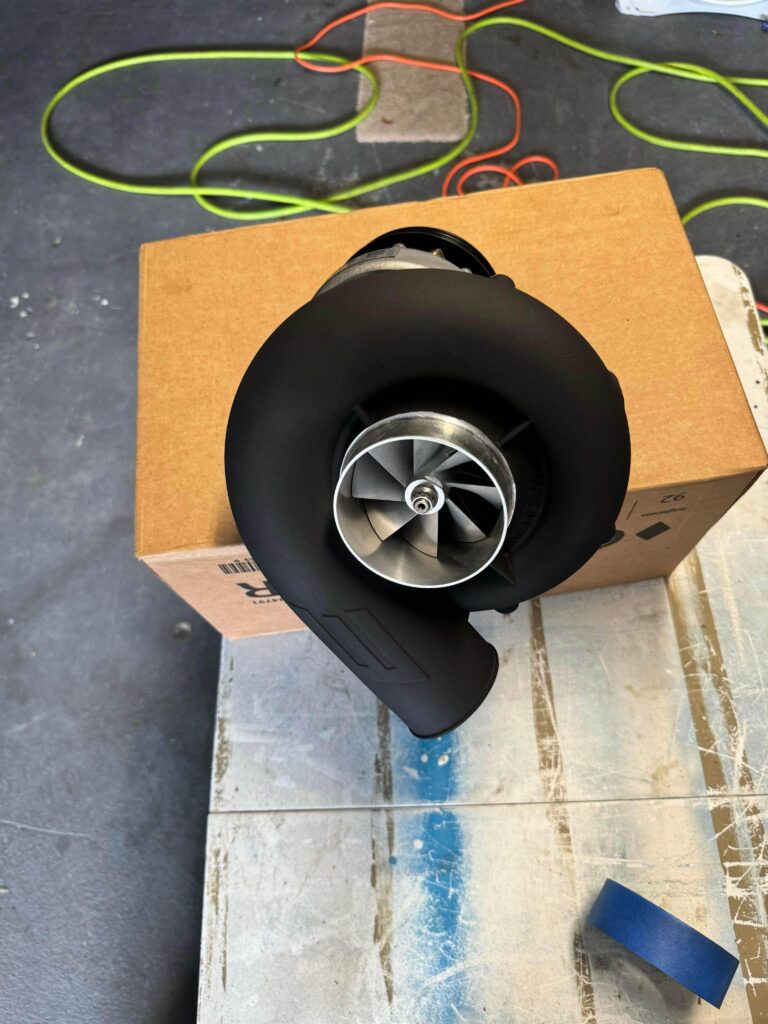

  • Ess G3 with custom impeller from OffCamber autosport with g4 spec intercooler
  • Monster heat exchanger
  • Modular Motorsports timing chain guides and arms
  • Boundary timing sprocket
  • Boundary Black series engine oil pump gears
  • Watson Racing engine oil catch can
  • Watson Racing battery relocation kit
  • C&R Racing coolant reservoir
  • Reische Performance Products 170-degree thermostat
  • Fore Innovations triple-pump fuel system
  • Injector Dynamics ID1700-XDS fuel injectors
  • aFe Long tube headers with offroad connection pipes
  • Automotive Racing Products header bolts
  • aFe power machforce 3" exhaust
  • Astro Performance Stage 2 Tremec TR6060 6-speed manual transmission (with integral bellhousing, 26-spline input shaft, 2.97-ratio 1st gear, 0.80-ratio 5th gear, 0.62-ratio 6th gear, and bolt-on flange-design output shaft) Cryogenic treatment on the forward gears Polished synchronizer sliders, hubs, and shift forks Brass shift fork pads on 1st through 4th gears Carbon/sintered bronze rings on 1st gear and reverse Sintered bronze rings on 2nd through 6th gears
  • McLeod Racing lightweight steel flywheel
  • Automotive Racing Products flywheel bolts
  • McLeod Racing RXT clutch kit
  • Steeda clutch assist spring
  • Barton shifter
  • Driveshaft Shop carbon fiber driveshaft
  • Blowfish Racing driveshaft loop and support bracket
  • Ford Performance Half Shafts rated for 1500hp with Dorman Axle Nuts
  • Ford Performance front wheel hub kit Ford Performance rear wheel hub kit TIMKEN Wheel Bearings
  • UPR Product Linkages
  • Steeda adjustable toe links
  • Steeda knuckle to toe link bearing assembly
  • KW V3 Coilovers
  • Steeda front and rear sway bars with billet mounts
  • Steeda adjustable front and rear sway bar end links
  • Steeda G-Trac brace
  • Steeda jacking rails
  • Ford Performance solid suspension bushings
  • Steeda suspension subframe support braces
  • Steeda Bump Steer Kit
  • Street 19” SVE S350 Wheels wrapped in NT555g2 tires; 19x10front 19x11 rear
  • Track 19” APEX forged SM10-RE wheels wrapped in Michelin Pilot Sport Cup 2R tires; 19x10.5 front 19x11.5 rear

Cosmetic Modifications

  • Shelby GT350 steering wheel Start Button Cover

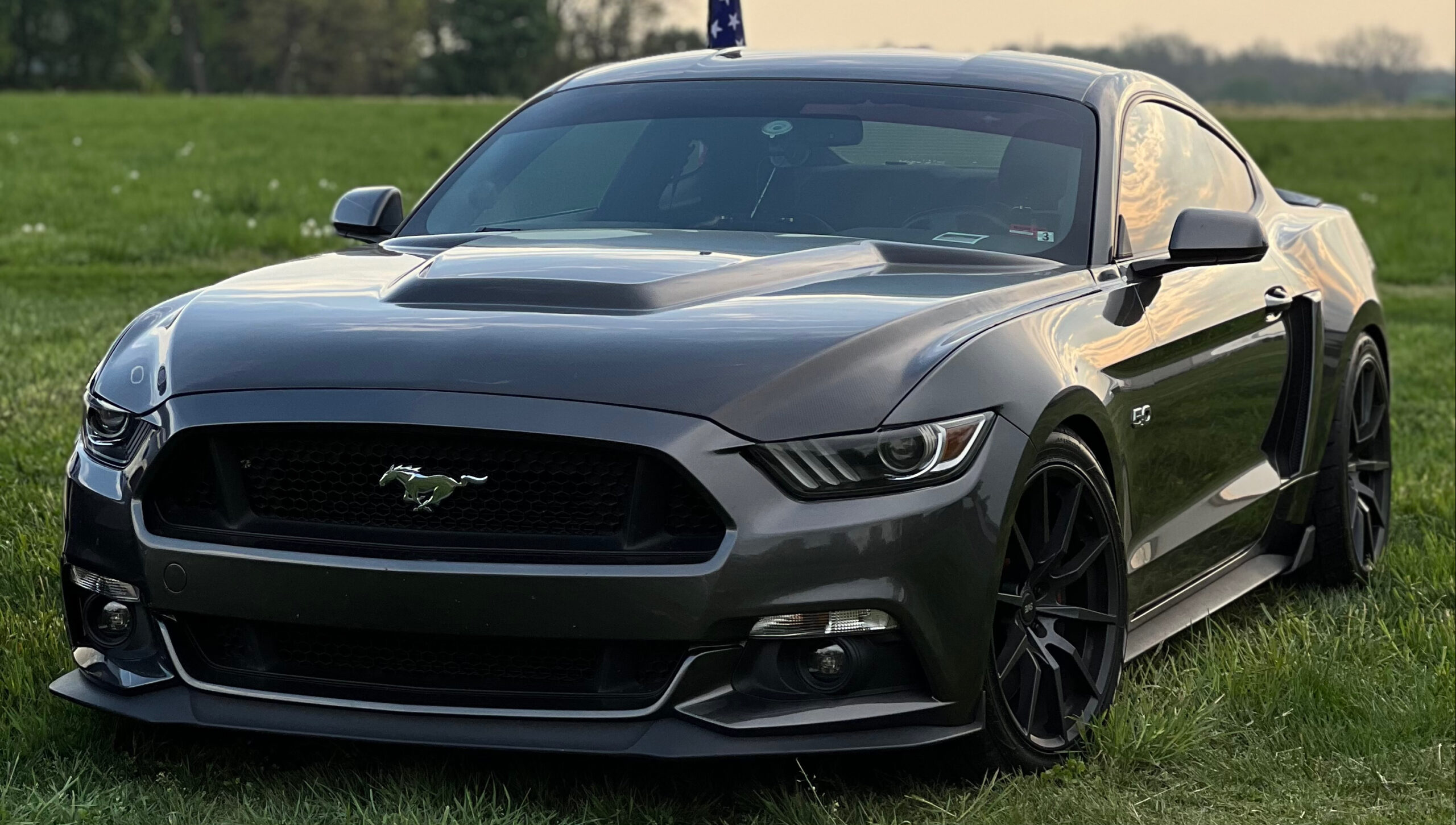

  • Anderson Composites gt350 style Carbon fiber hood
  • 50% tinted windows (sides and rear)
  • Windshield Sunstrip
  • GT350 Trunk with Anderson Composites gt500/mach 1 spoiler with carbon fiber gurney flap and carbon fiber decklid panel with shelby badge
  • Cars Paint has been Clay Barred and Waxed with sealant
